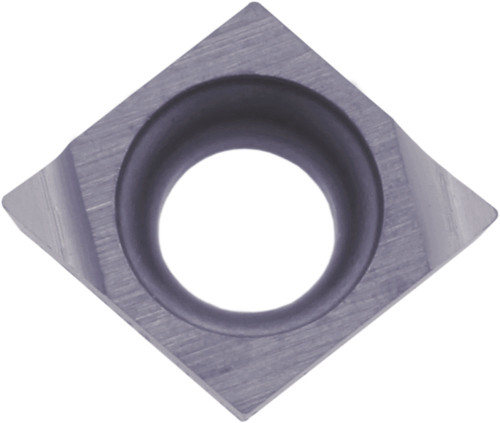

Kyocera Turning Insert CCET141102MRF PR1725: TLM00010

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00010
$42.27

Kyocera ISOI turning insert for steel, 0.1690 in (4.30 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM00010.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Corner Radius (Decimal)
0.0040
Included Angle
80
ANSI Designation
CCET141102MRFPR1725
Insert Style
CCET
Insert Grade
PR1725
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
141102
Secondary Workpiece Material
Stainless Steel
Workpiece Material
Steel
IC Size (Decimal)
0.1690
Rake
Positive
Insert Thickness (Metric)
1.80
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Insert Thickness (Decimal)
0.0710
ISO Designation
CCET040101MR-F
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
4.30
Coating Process
PVD
Chip Breaker Type
F
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
