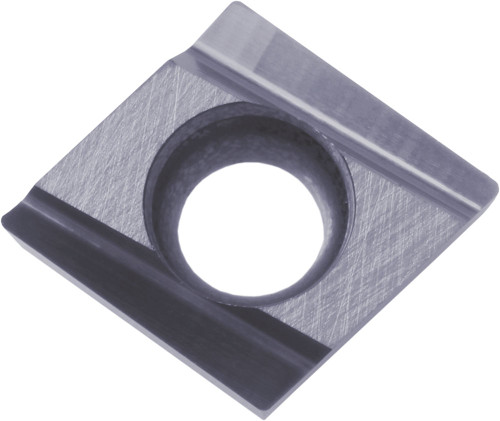

Kyocera Turning Insert CCET21502MFRJ PR1725: TLM00023

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00023
$25.15

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM00023.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
IC Size (Metric)
6.35
Included Angle
80
Corner Radius (Decimal)
0.0040
Insert Style
CCET
Insert Thickness (Fractional)
3/32
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21502
Secondary Workpiece Material
Stainless Steel
Insert Thickness (Metric)
2.38
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Insert Grade
PR1725
Chip Breaker Type
J
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
CCET060201MFR-J
Workpiece Material
Steel
ANSI Designation
CCET21502MFRJPR1725
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Coating Process
PVD
