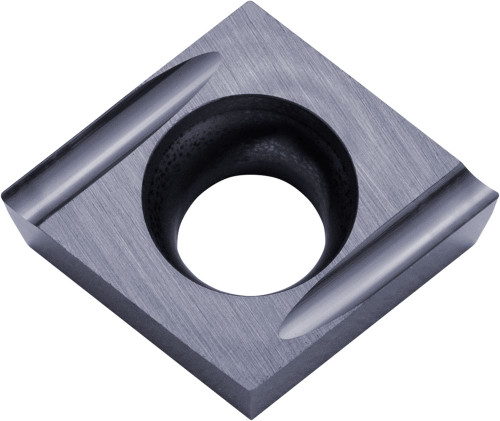

Kyocera CCET 21505MFLU PR1705 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLN40013
$25.15
Kyocera CCET 21505MFLU PR1705 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCET
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8864989
ANSI Part Number
CCET21505MFLUPR1705
ISO Part Number
CCET060202MFL-U
Rake
Positive
Material Group / Grade
PR1705
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
