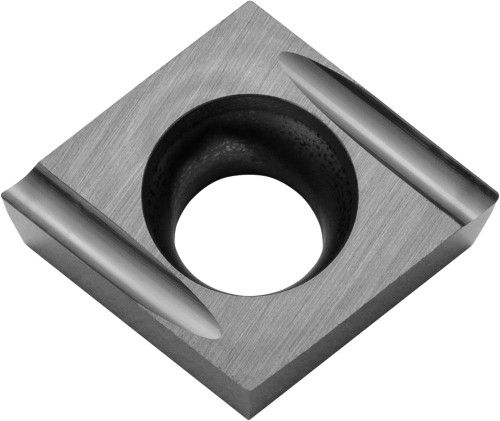

Kyocera CCET 32502MFRU TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR01141
$27.50
Kyocera CCET 32502MFRU TN620 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCET
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32502
Old Material Number
8843007
ANSI Part Number
CCET32502MFRUTN620
ISO Part Number
CCET09T301MFR-U
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
