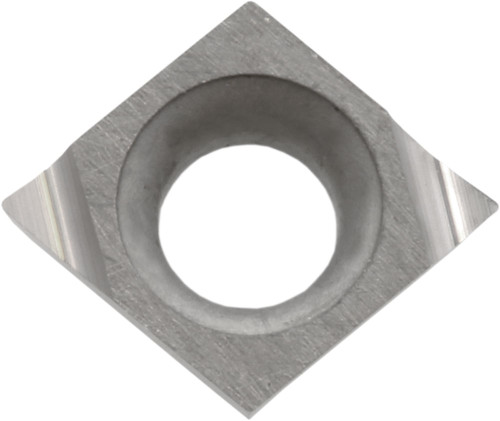

Kyocera Turning Insert CCGT110905RF KW10: TWE00031

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00031
$32.46

Kyocera ISOI turning insert for non-ferrous metals and high-temp alloys, 0.1380 in (3.50 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, right hand. Carbide, uncoated. Manufacturer part number TWE00031.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Insert Thickness (Metric)
1.40
Corner Radius (Decimal)
0.0080
Included Angle
80
ANSI Designation
CCGT110905RFKW10
Insert Style
CCGT
Insert Grade
KW10
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
110905
Secondary Workpiece Material
Cast Iron
Workpiece Material
Non-Ferrous, High-Temp Alloy
IC Size (Decimal)
0.1380
Rake
Positive
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Thickness (Decimal)
0.0550
ISO Designation
CCGT030102R-F
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
3.50
Chip Breaker Type
F
Pack quantity
10
