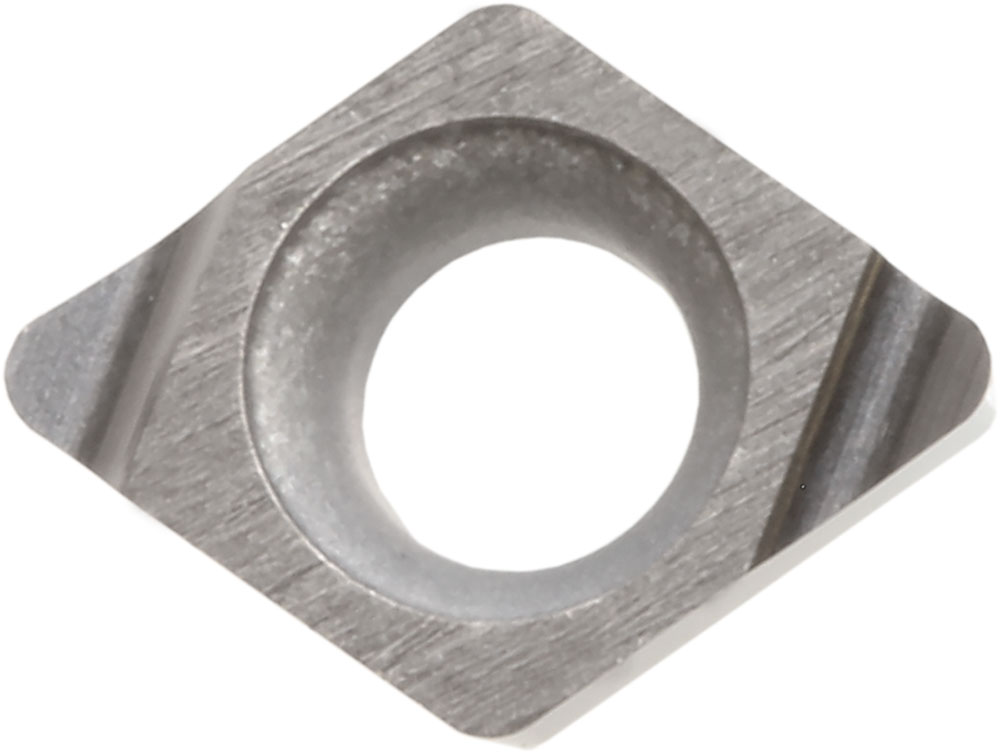

Kyocera CCGT 11091LF TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ00003
$26.72
Kyocera CCGT 11091LF TN60 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
0.06 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
11091
Old Material Number
8807833
ANSI Part Number
CCGT11091LFTN60
ISO Part Number
CCGT030104L-F
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Corner Radius (Fractional)
1/64
Thickness (Metric)
1.40
Chipbreaker
F
Cutting Range
Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
3.50
Inscribed Circle
0.14 Inch
Pack quantity
10
