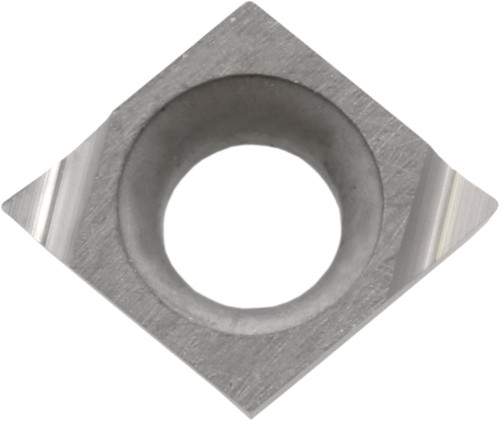

Kyocera CCGT 141102LF KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00007
$32.46
Kyocera CCGT 141102LF KW10 Grade Uncoated Carbide, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Left
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
0.004 Inch
Included Angle
80 degrees
Thickness
0.07 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
141102
Old Material Number
8816776
ANSI Part Number
CCGT141102LFKW10
ISO Part Number
CCGT040101L-F
Rake
Positive
Material Group / Grade
KW10
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
1.80
Chipbreaker
F
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
4.30
Inscribed Circle
0.17 Inch
Pack quantity
10
Kyocera CCGT 141102LF KW10 Grade Uncoated Carbide, Indexable Turning Insert
$32.46
