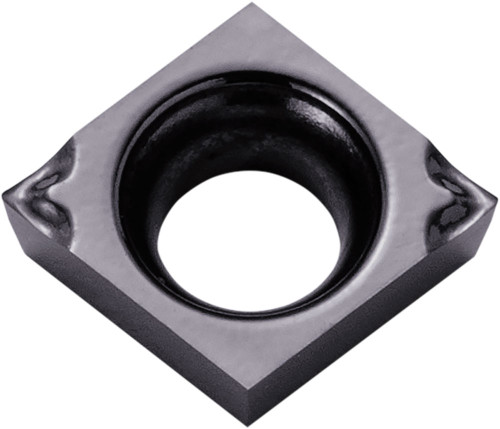

Kyocera Turning Insert CCGT141102MPCF PR1225: TKE01385

Kyocera Turning Insert CCGT141102MPCF PR1225, manufacturer part number TKE01385.

Specifications: IC Size: 0.1690 in (4.30 mm); Insert Thickness: 0.0710 in (1.80 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831779; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 141102; Hand Direction: Neutral; Insert Style: CCGT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCGT141102MPCFPR1225; Chip Breaker Type: CF; ISO Designation: CCGT040101MP-CF; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing, Sub-Spindle; Insert Grade: PR1225; Workpiece Material: Stainless Steel, Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.
