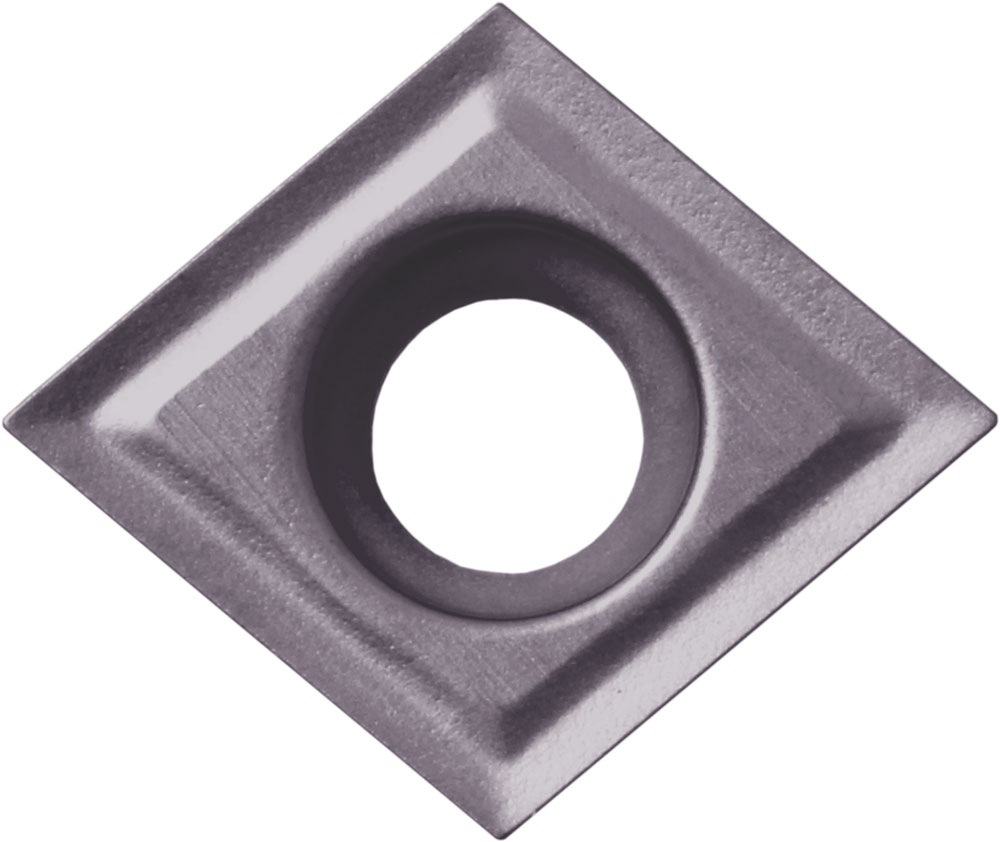

Kyocera CCGT 215013MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE01321
$25.15
Kyocera CCGT 215013MFRU PR1225 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
215013
Old Material Number
8831788
ANSI Part Number
CCGT215013MFRUPR1225
ISO Part Number
CCGT0602005MFR-U
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
Kyocera CCGT 215013MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert
$25.15
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
