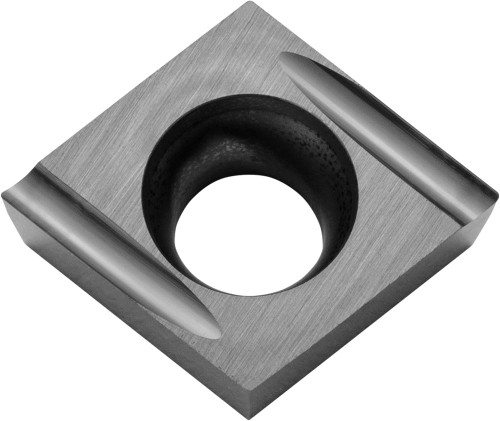

Kyocera Turning Insert CCGT21505ERU TN60: TSJ00080

Kyocera Turning Insert CCGT21505ERU TN60, manufacturer part number TSJ00080.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8807845; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 21505; Hand Direction: Right; Insert Style: CCGT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCGT21505ERUTN60; Chip Breaker Type: U; ISO Designation: CCGT060202ER-U; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing, Sub-Spindle; Insert Grade: TN60; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.
