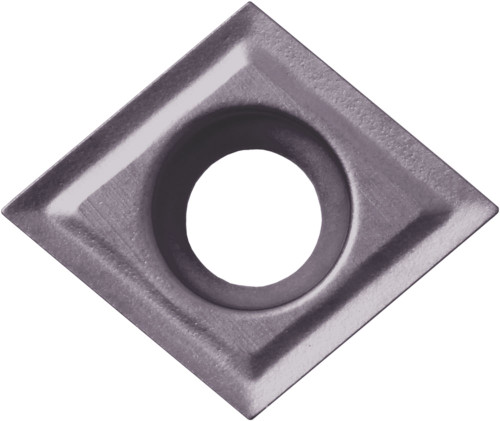

Kyocera Turning Insert CCGT21505MF PR1725: TLM00045

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00045
$25.15

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM00045.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
IC Size (Metric)
6.35
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CCGT
Insert Thickness (Fractional)
3/32
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21505
Secondary Workpiece Material
Stainless Steel
Insert Thickness (Metric)
2.38
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
PR1725
Chip Breaker Type
F
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
CCGT060202MF
Workpiece Material
Steel
ANSI Designation
CCGT21505MFPR1725
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Coating Process
PVD
