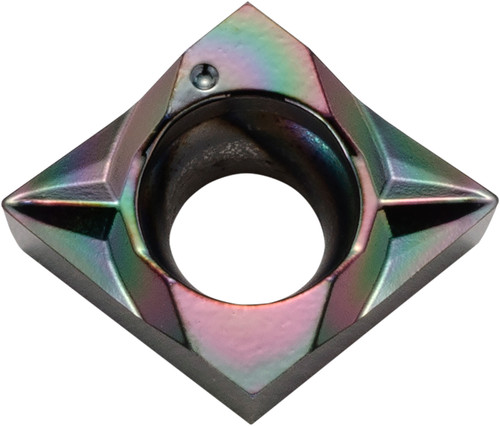

Kyocera CCGT 21505MFPSK PDL010 Grade DLC Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK01191
$27.67
Kyocera CCGT 21505MFPSK PDL010 Grade DLC Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (N) Non-Ferrous Metals

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8860775
ANSI Part Number
CCGT21505MFPSKPDL010
ISO Part Number
CCGT060202MFP-SK
Rake
Positive
Material Group / Grade
PDL010
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
SK
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
Kyocera CCGT 21505MFPSK PDL010 Grade DLC Carbide, Indexable Turning Insert
$27.67
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
