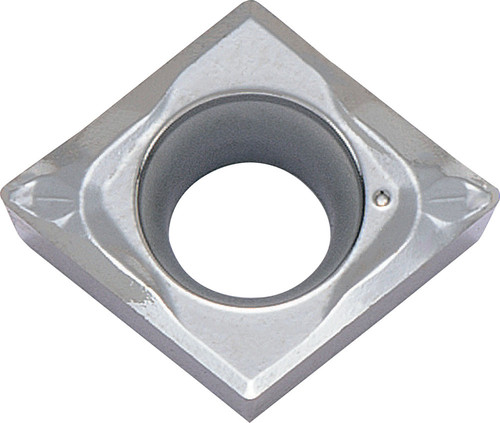

Kyocera Turning Insert CCGT2151AP KW10: TWE04701

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE04701
$26.70

Kyocera ISOI turning insert for non-ferrous metals and high-temp alloys, 1/4 in (6.35 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, uncoated. Manufacturer part number TWE04701.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
IC Size (Metric)
6.35
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CCGT2151APKW10
Insert Style
CCGT
Insert Thickness (Metric)
2.38
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2151
Secondary Workpiece Material
Cast Iron
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Insert Grade
KW10
Rake
Positive
Insert Thickness (Fractional)
3/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Non-Ferrous, High-Temp Alloy
ISO Designation
CCGT060204AP
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Chip Breaker Type
AP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/AP_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
