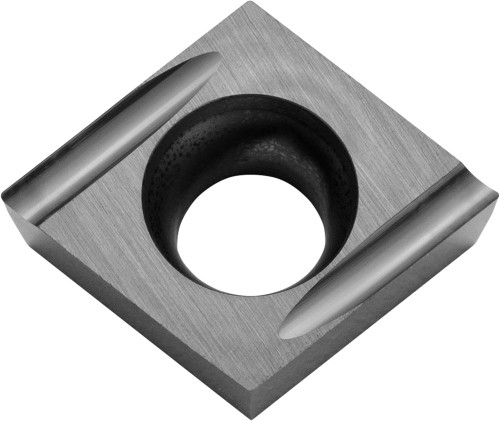

Kyocera CCGT 2151ELU TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR01284
$21.99
Kyocera CCGT 2151ELU TN620 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2151
Old Material Number
8843019
ANSI Part Number
CCGT2151ELUTN620
ISO Part Number
CCGT060204EL-U
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
