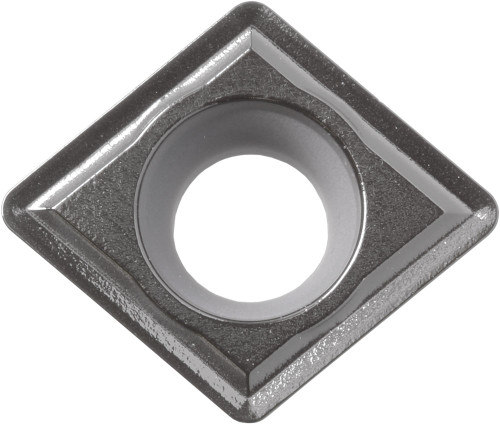

Kyocera Turning Insert CCGT32502 TN610: TSS01210

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS01210
$22.86

Kyocera Turning Insert CCGT32502 TN610, manufacturer part number TSS01210.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847854; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Medium; Usage Classification: Continuous; Insert Size: 32502; Hand Direction: Neutral; Insert Style: CCGT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCGT32502TN610; ISO Designation: CCGT09T301; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing, Sub-Spindle; Insert Grade: TN610; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
5/32
Included Angle
80
Corner Radius (Decimal)
0.0040
Insert Style
CCGT
Insert Thickness (Metric)
3.97
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32502
Old Material Number
8847854
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Insert Grade
TN610
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Workpiece Material
Steel
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
CCGT32502TN610
ISO Designation
CCGT09T301
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
