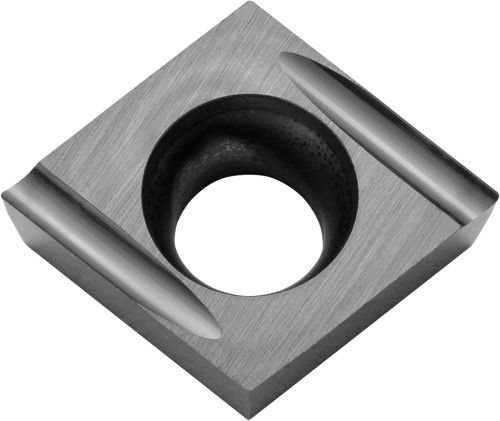

Kyocera Turning Insert CCGT32502MERU PR1725: TLM40013

Kyocera Turning Insert CCGT32502MERU PR1725, manufacturer part number TLM40013.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8865512; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 32502; Hand Direction: Right; Insert Style: CCGT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCGT32502MERUPR1725; Chip Breaker Type: U; ISO Designation: CCGT09T301MER-U; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing, Sub-Spindle; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
