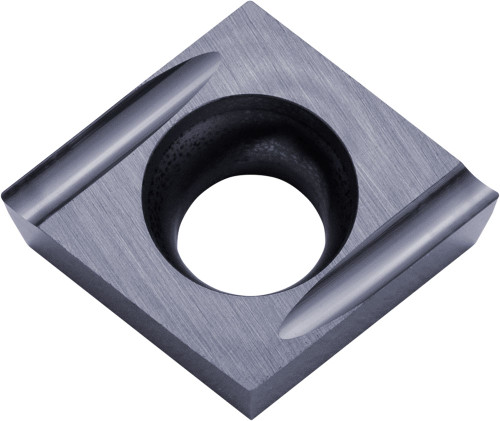

Kyocera Turning Insert CCGT32505FLU PR930: TKT00098

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT00098
$45.56

Kyocera Turning Insert CCGT32505FLU PR930, manufacturer part number TKT00098.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8800215; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 32505; Hand Direction: Left; Insert Style: CCGT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCGT32505FLUPR930; Chip Breaker Type: U; ISO Designation: CCGT09T302FL-U; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing, Sub-Spindle; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
TiCN
Insert Thickness (Fractional)
5/32
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CCGT
Insert Thickness (Metric)
3.97
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Old Material Number
8800215
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Insert Grade
PR930
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Steel, Stainless Steel
ISO Designation
CCGT09T302FL-U
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
CCGT32505FLUPR930
Chip Breaker Type
U
Pack quantity
10
Coating Process
PVD
Kyocera Turning Insert CCGT32505FLU PR930: TKT00098
$45.56
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
