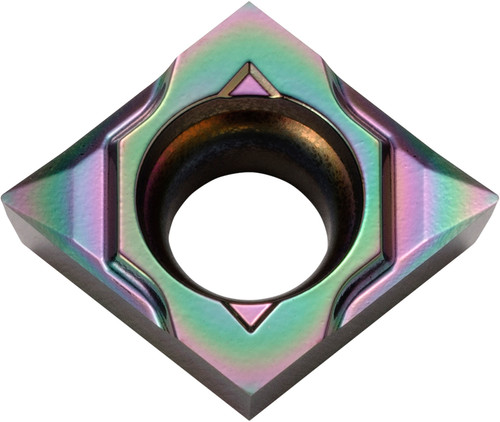

Kyocera CCGT 32505MPCK PDL025 Grade DLC Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLE01317
$29.63
Kyocera CCGT 32505MPCK PDL025 Grade DLC Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (N) Non-Ferrous Metals

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32505
Old Material Number
8845216
ANSI Part Number
CCGT32505MPCKPDL025
ISO Part Number
CCGT09T302MP-CK
Rake
Positive
Material Group / Grade
PDL025
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
CK
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
