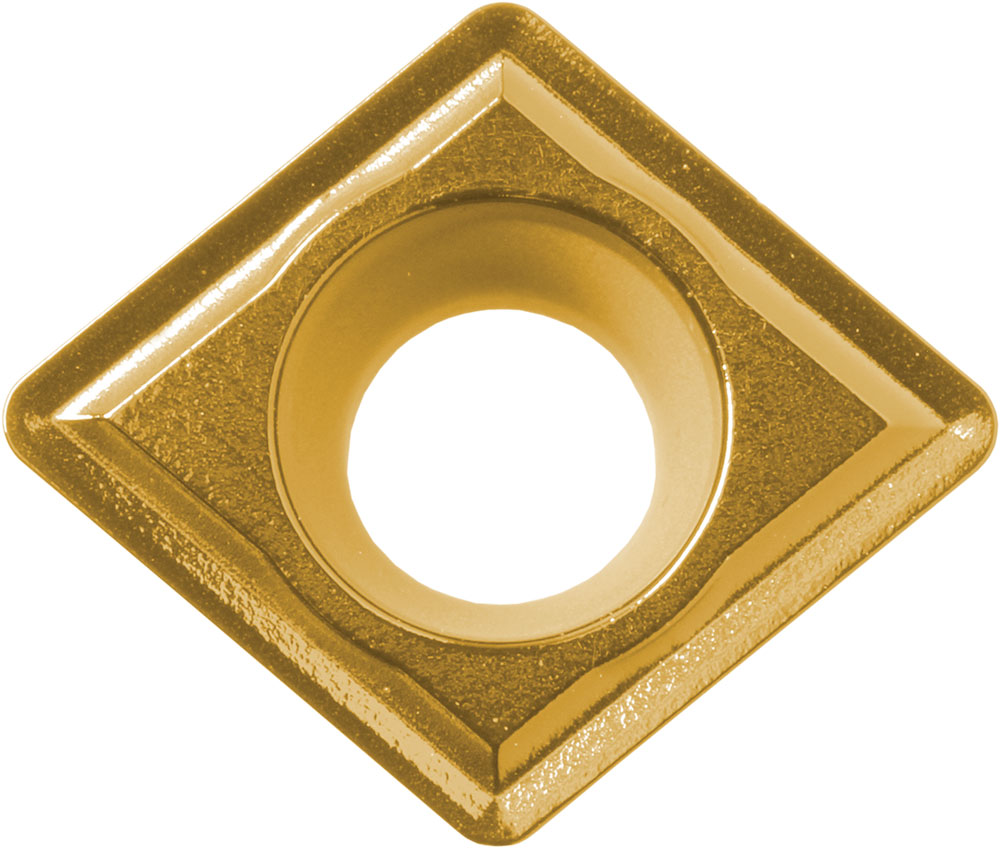

Kyocera CCGT 3251 PV710 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF01212
$27.46
Kyocera CCGT 3251 PV710 Grade PVD Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8847414
ANSI Part Number
CCGT3251PV710
ISO Part Number
CCGT09T304
Rake
Positive
Material Group / Grade
PV710
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
3.97
Cutting Range
Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
