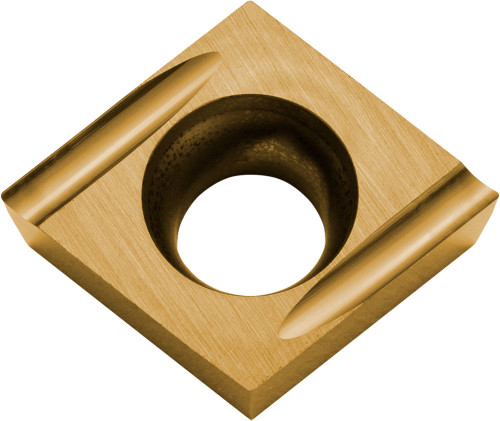

Kyocera CCGT 3251ELU PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00045
$28.82
Kyocera CCGT 3251ELU PV730 Grade PVD Cermet, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Heavy Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8865790
ANSI Part Number
CCGT3251ELUPV730
ISO Part Number
CCGT09T304EL-U
Rake
Positive
Material Group / Grade
PV730
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Heavy Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
