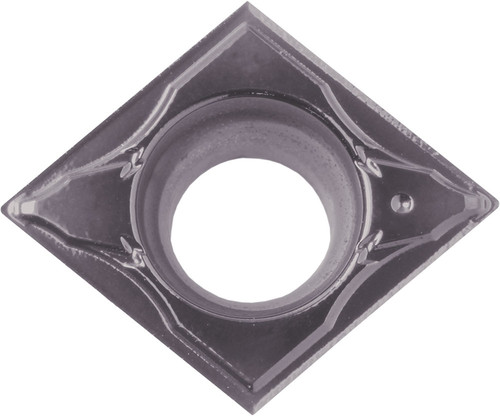

Kyocera CCGT 3251MFPGF PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC01427
$26.95
Kyocera CCGT 3251MFPGF PR1535 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8846123
ANSI Part Number
CCGT3251MFPGFPR1535
ISO Part Number
CCGT09T304MFP-GF
Rake
Positive
Material Group / Grade
PR1535
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
GF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
