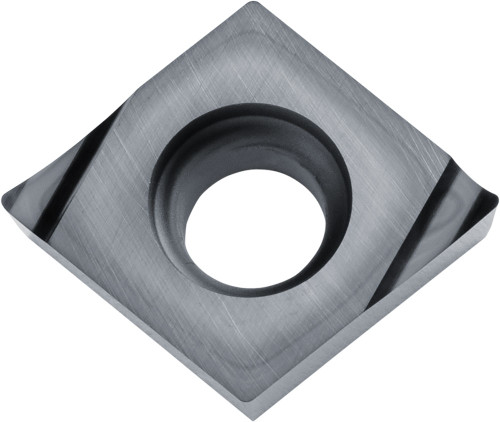

Kyocera Turning Insert CCGT3252LA3 KW10: TWE04515

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE04515
$28.60

Kyocera ISOI turning insert for non-ferrous metals and high-temp alloys, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, left hand. Carbide, uncoated. Manufacturer part number TWE04515.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
Uncoated
Insert Thickness (Fractional)
5/32
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CCGT3252LA3KW10
Insert Style
CCGT
Machining Operations
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3252
Secondary Workpiece Material
Cast Iron
Insert Grade
KW10
Workpiece Material
Non-Ferrous, High-Temp Alloy
Rake
Positive
Insert Thickness (Metric)
3.97
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
A3
ISO Designation
CCGT09T308L-A3
Pack quantity
10
Kyocera Turning Insert CCGT3252LA3 KW10: TWE04515
$28.60
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
