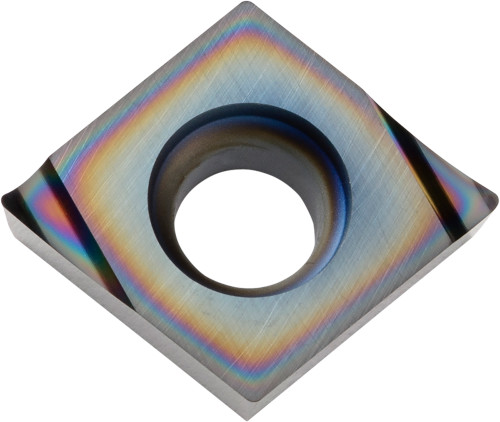

Kyocera CCGT 4305RA3 PDL025 Grade DLC Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLE04520
$63.39
Kyocera CCGT 4305RA3 PDL025 Grade DLC Carbide, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CCGT
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
4305
Old Material Number
8845269
ANSI Part Number
CCGT4305RA3PDL025
ISO Part Number
CCGT120402R-A3
Rake
Positive
Material Group / Grade
PDL025
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
A3
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
