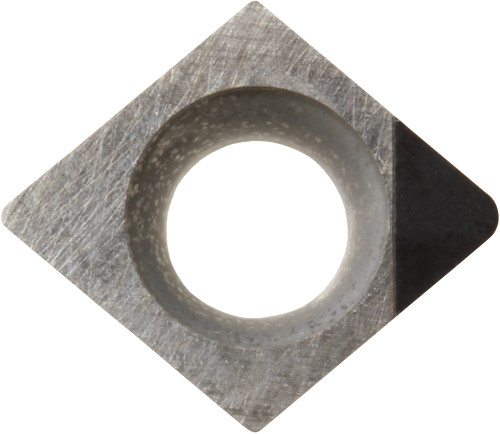

Kyocera CCGW 3251 KPD001 Grade PCD, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR01023
$242.58
Kyocera CCGW 3251 KPD001 Grade PCD, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCGW
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8816892
ANSI Part Number
CCGW3251KPD001
ISO Part Number
CCGW09T304
Rake
Positive
Material Group / Grade
KPD001
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Thickness (Metric)
3.97
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Kyocera CCGW 3251 KPD001 Grade PCD, Indexable Turning Insert
$242.58
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
