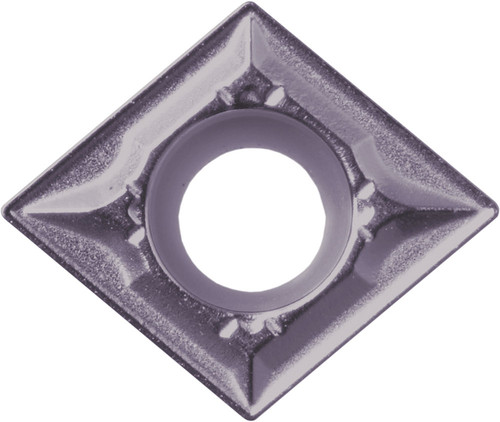

Kyocera CCMT 21505GK PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00079
$23.38
Kyocera CCMT 21505GK PR1725 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCMT
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8863333
ANSI Part Number
CCMT21505GKPR1725
ISO Part Number
CCMT060202GK
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
GK
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
