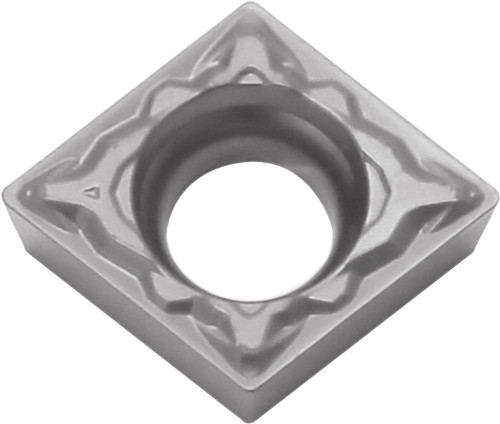

Kyocera CCMT 21505PP TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS01491
$18.65
Kyocera CCMT 21505PP TN610 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCMT
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8846964
ANSI Part Number
CCMT21505PPTN610
ISO Part Number
CCMT060202PP
Rake
Positive
Material Group / Grade
TN610
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
