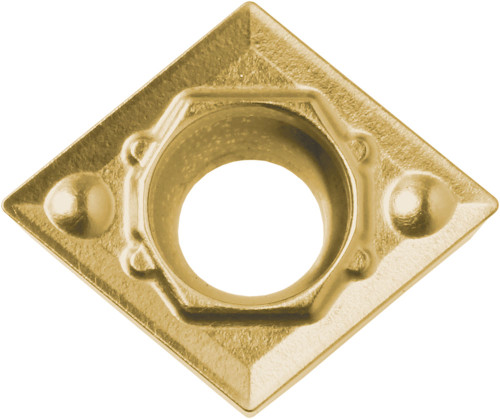

Kyocera Turning Insert CCMT2151HQ CA510: TAA00431

Kyocera Turning Insert CCMT2151HQ CA510, manufacturer part number TAA00431.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840447; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 2151; Hand Direction: Neutral; Insert Style: CCMT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCMT2151HQCA510; Chip Breaker Type: HQ; ISO Designation: CCMT060204HQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA510; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
