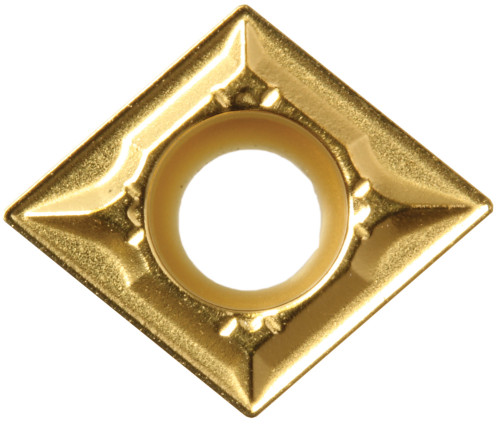

Kyocera Turning Insert CCMT32505GK CA515: TAB00485

Kyocera Turning Insert CCMT32505GK CA515, manufacturer part number TAB00485.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840285; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 32505; Hand Direction: Neutral; Insert Style: CCMT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCMT32505GKCA515; Chip Breaker Type: GK; ISO Designation: CCMT09T302GK; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA515; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
