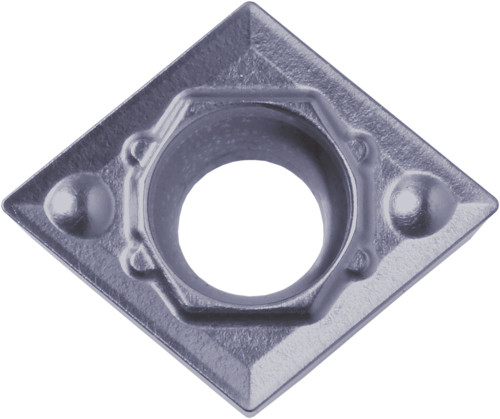

Kyocera Turning Insert CCMT32505HQ PR1725: TLM00087

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00087
$23.38

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM00087.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
Insert Thickness (Fractional)
5/32
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CCMT
Insert Thickness (Metric)
3.97
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Secondary Workpiece Material
Stainless Steel
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
PR1725
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
CCMT09T302HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
CCMT32505HQPR1725
Chip Breaker Type
HQ
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Coating Process
PVD
