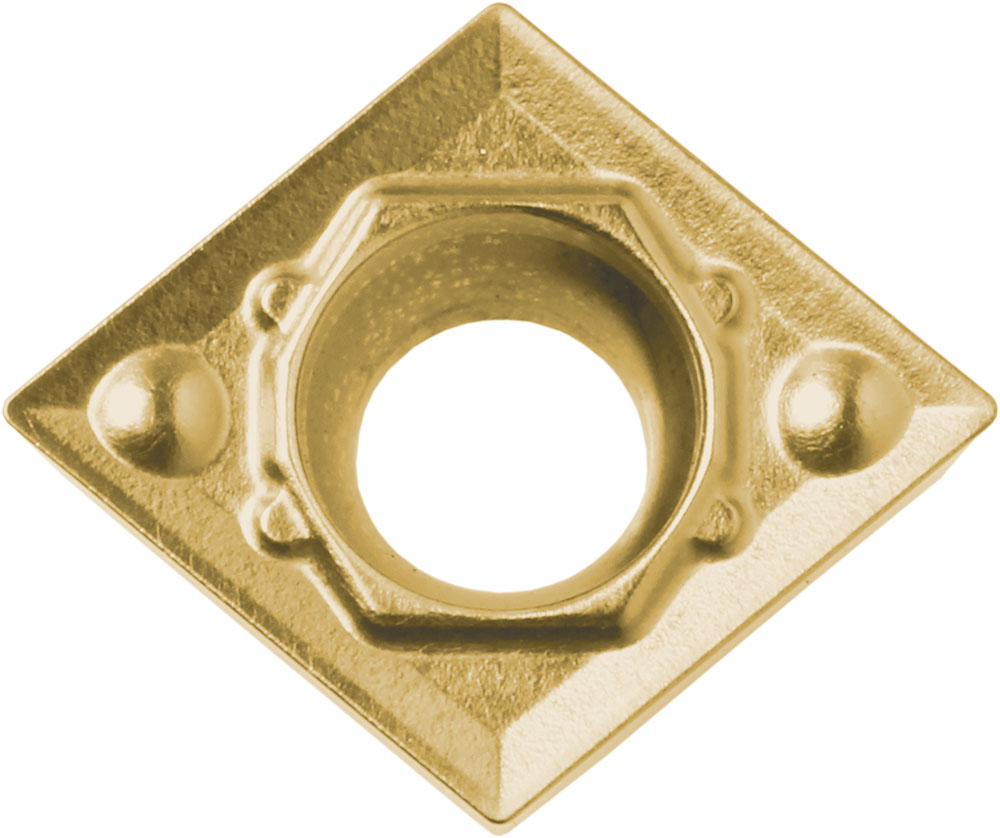

Kyocera Turning Insert CCMT32505HQ PR930: TKT00030

Kyocera Turning Insert CCMT32505HQ PR930, manufacturer part number TKT00030.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8800258; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 32505; Hand Direction: Neutral; Insert Style: CCMT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCMT32505HQPR930; Chip Breaker Type: HQ; ISO Designation: CCMT09T302HQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.
