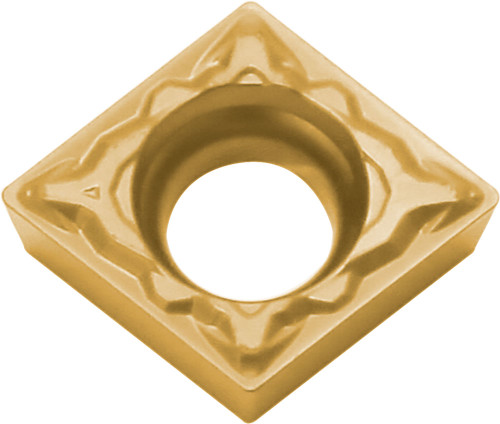

Kyocera Turning Insert CCMT32505PP CA515: TAB00506

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB00506
$22.10

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB00506.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
5/32
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
CCMT
Insert Thickness (Metric)
3.97
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA515
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
CCMT09T302PP
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
CCMT32505PPCA515
Chip Breaker Type
PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Coating Process
CVD
