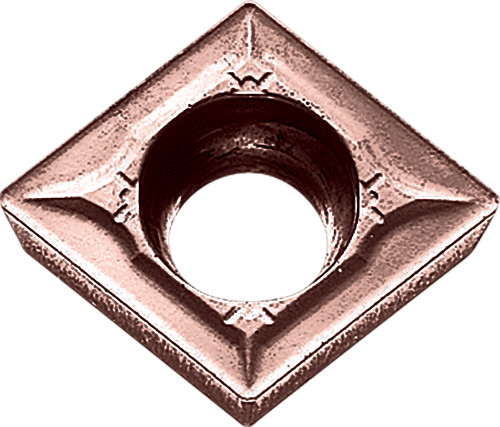

Kyocera Turning Insert CCMT3251GK CA320: TME00486

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TME00486
$22.10

Kyocera ISOI turning insert for cast iron, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TME00486.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CCMT3251GKCA320
Insert Style
CCMT
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Insert Grade
CA320
Workpiece Material
Cast Iron
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
9.525
Chip Breaker Type
GK
ISO Designation
CCMT09T304GK
Pack quantity
10
