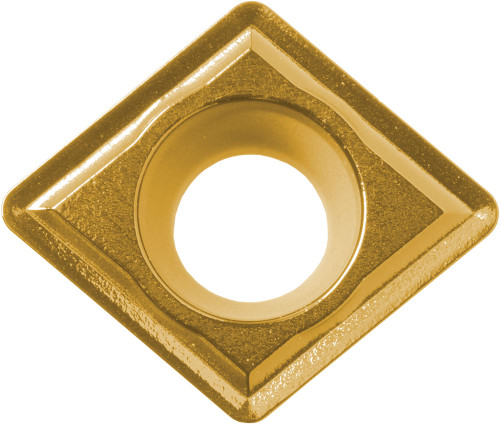

Kyocera Turning Insert CCMT3252 CA515: TAB00500

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB00500
$22.10

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB00500.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CCMT3252CA515
Insert Style
CCMT
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3252
Insert Grade
CA515
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Coating Process
CVD
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
CCMT09T308
IC Size (Fractional)
3/8
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
