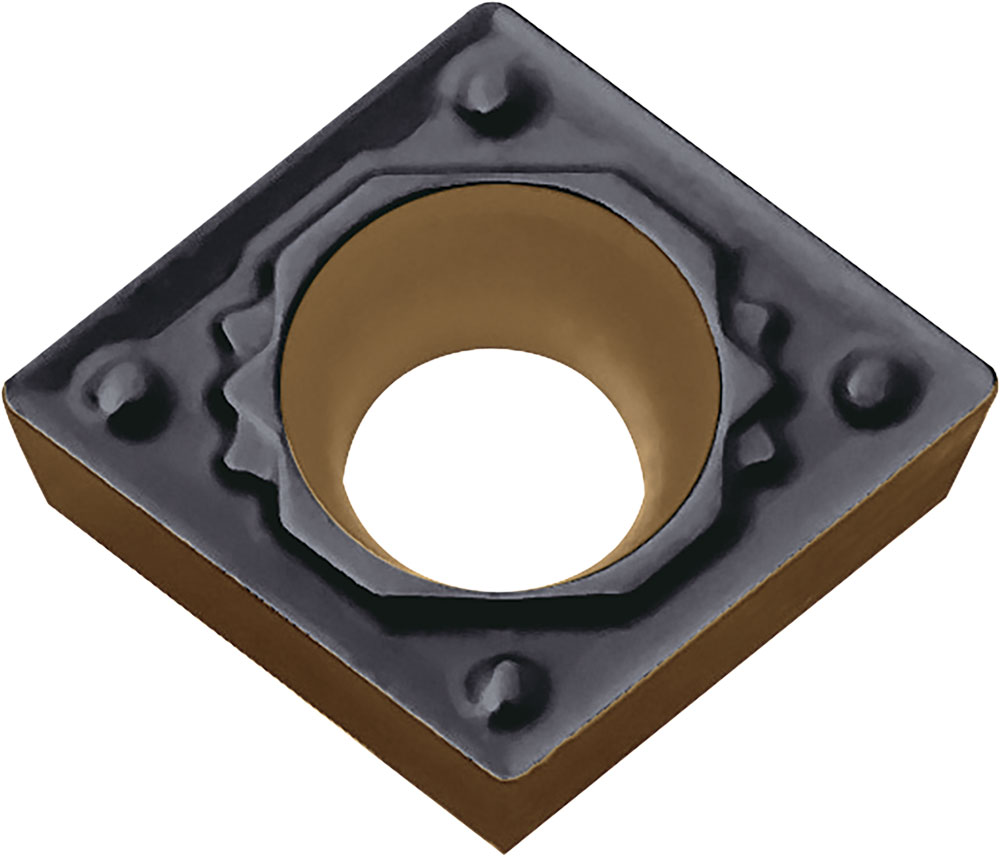

Kyocera Turning Insert CCMT3252HQ CA525: TAC00484

Kyocera Turning Insert CCMT3252HQ CA525, manufacturer part number TAC00484.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8838313; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 3252; Hand Direction: Neutral; Insert Style: CCMT; Insert Shape: 80 Degree Diamond; ANSI Designation: CCMT3252HQCA525; Chip Breaker Type: HQ; ISO Designation: CCMT09T308HQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA525; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
