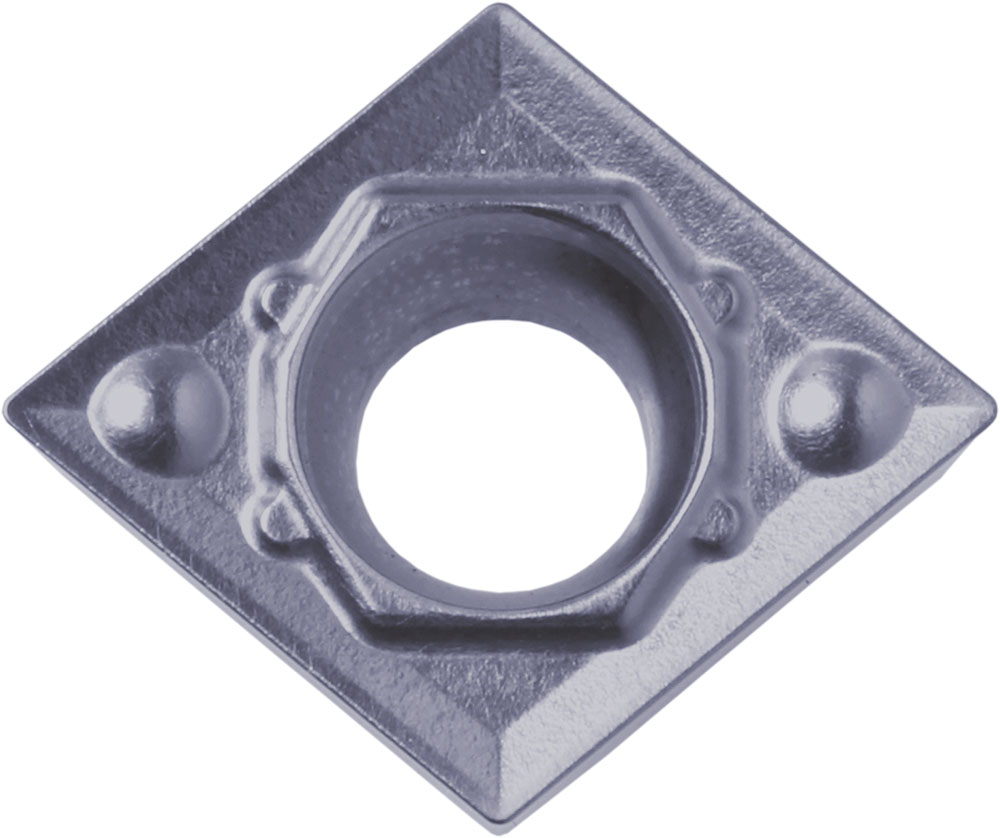

Kyocera CCMT 3252HQ PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC01532
$23.38
Kyocera CCMT 3252HQ PR1535 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CCMT
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3252
Old Material Number
8846138
ANSI Part Number
CCMT3252HQPR1535
ISO Part Number
CCMT09T308HQ
Rake
Positive
Material Group / Grade
PR1535
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
Kyocera CCMT 3252HQ PR1535 Grade PVD Carbide, Indexable Turning Insert
$23.38
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
