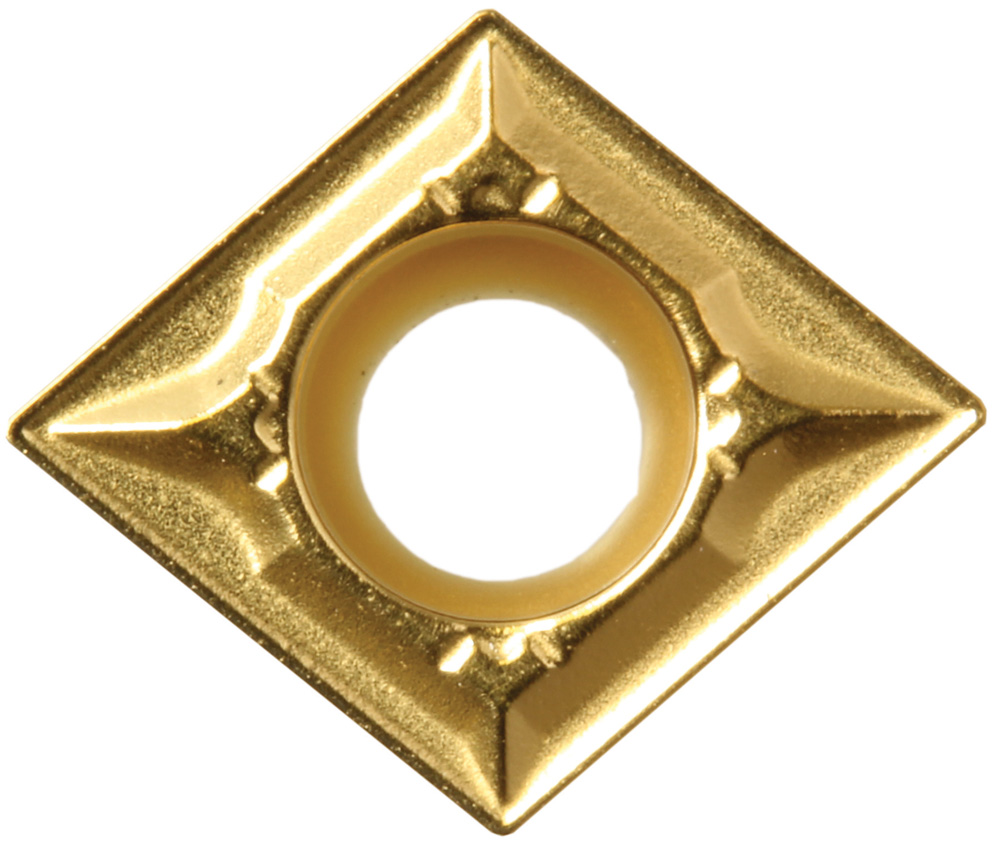

Kyocera Turning Insert CCMT432GK CA6515: TJU00531

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJU00531
$31.43

Kyocera ISOI turning insert for stainless steel, 1/2 in (12.70 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TJU00531.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CCMT432GKCA6515
Insert Style
CCMT
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Secondary Workpiece Material
High-Temp Alloy
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA6515
Rake
Positive
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Workpiece Material
Stainless Steel
ISO Designation
CCMT120408GK
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
GK
Pack quantity
10
