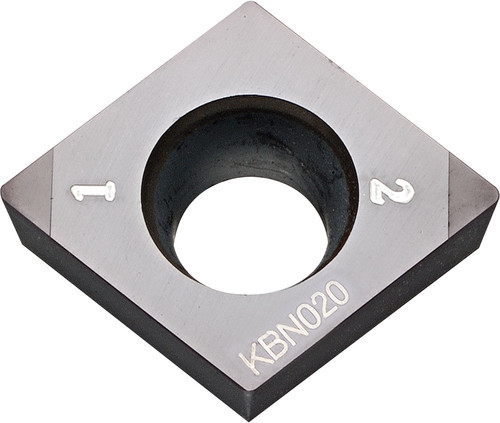

Kyocera CCMW 2152T00315ME KBN020 Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00003
$121.55
Kyocera CCMW 2152T00315ME KBN020 Grade CBN, 80 Degree Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous-Interrupted Machining of (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CCMW
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2152
ANSI Part Number
CCMW2152T00315MEKBN020
ISO Part Number
CCMW060208T00815ME
Rake
Positive
Material Group / Grade
KBN020
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
2.38
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
