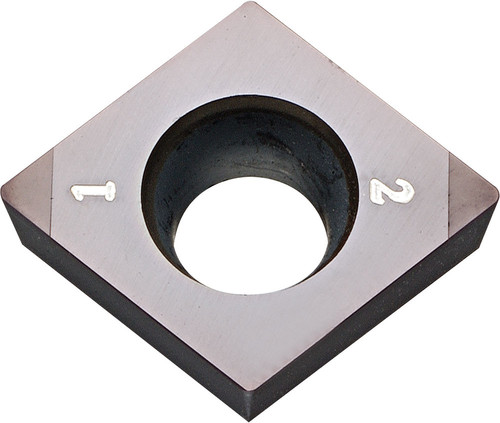

Kyocera Turning Insert CCMW3251S00525MES KBN05M: TBN01314

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN01314
$115.75

Kyocera Turning Insert CCMW3251S00525MES KBN05M, manufacturer part number TBN01314.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8835303; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 3251; Hand Direction: Neutral; Insert Style: CCMW; Insert Shape: 80 Degree Diamond; ANSI Designation: CCMW3251S00525MESKBN05M; ISO Designation: CCMW09T304S01225MES; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: KBN05M; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CCMW3251S00525MESKBN05M
Insert Style
CCMW
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Old Material Number
8835303
Insert Grade
KBN05M
Workpiece Material
Hardened Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Coating Process
PVD
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
CCMW09T304S01225MES
IC Size (Fractional)
3/8
