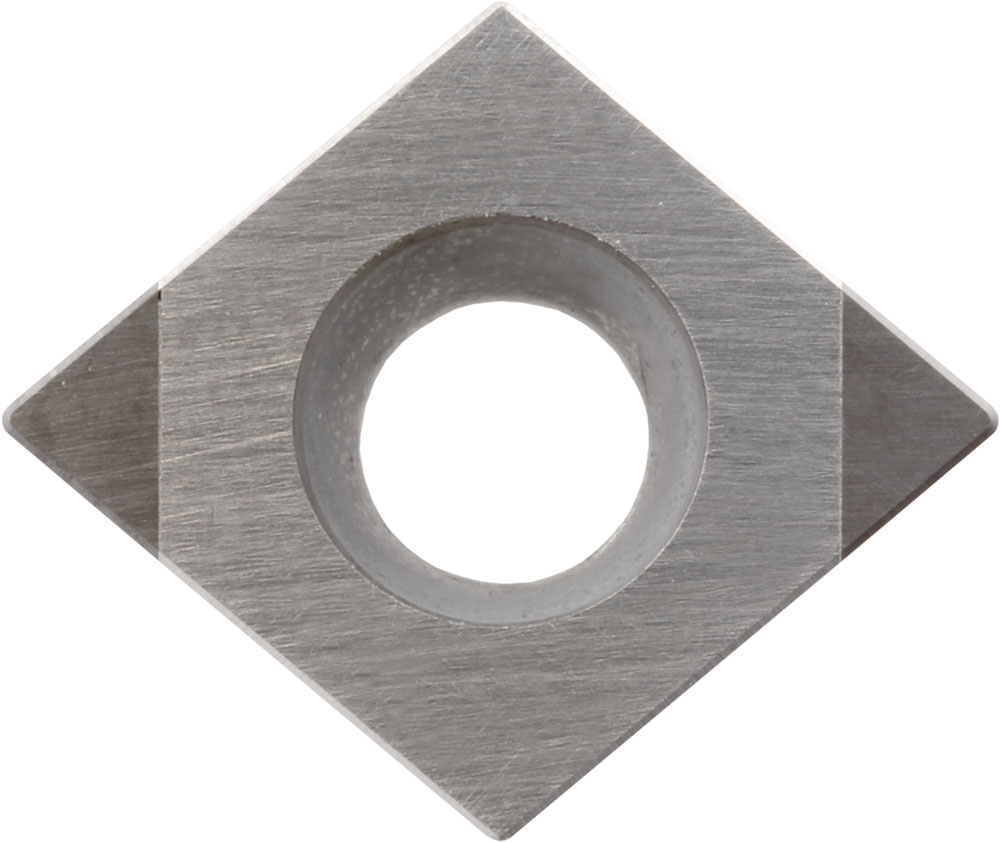

Kyocera Turning Insert CCMW3252T00315ME KBN05M: TBN01197

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN01197
$115.75

Kyocera ISOI turning insert for hardened steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBN01197.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CCMW3252T00315MEKBN05M
Insert Style
CCMW
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3252
Insert Grade
KBN05M
Workpiece Material
Hardened Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Coating Process
PVD
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
CCMW09T308T00815ME
IC Size (Fractional)
3/8
