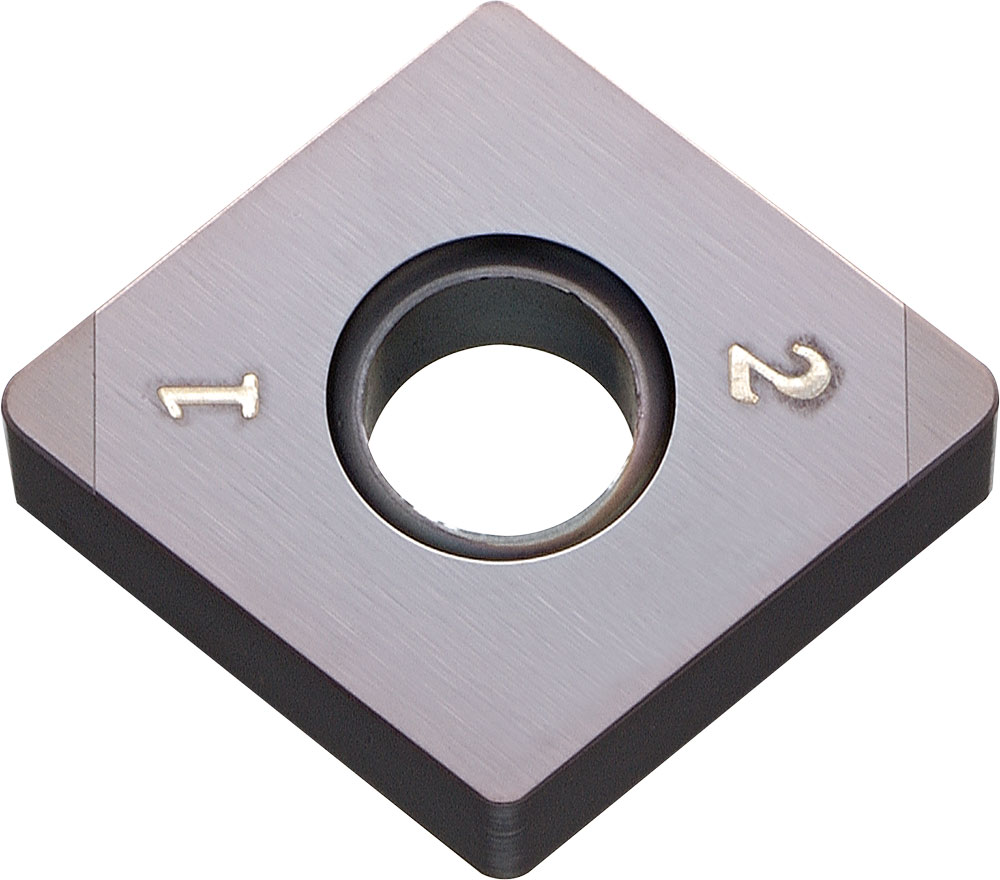

Kyocera Turning Insert CNGA432S00515MEW KBN25M: TBZ01466

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ01466
$115.75

Kyocera Turning Insert CNGA432S00515MEW KBN25M, manufacturer part number TBZ01466.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8824478; Rake: Negative; Number of Cutting Edges: 2; Cutting Range: Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 432; Hand Direction: Neutral; Insert Style: CNGA; Insert Shape: 80 Degree Diamond; ANSI Designation: CNGA432S00515MEWKBN25M; ISO Designation: CNGA120408S01215MEW; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: KBN25M; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CNGA432S00515MEWKBN25M
Insert Style
CNGA
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8824478
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
KBN25M
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
ISO Designation
CNGA120408S01215MEW
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
