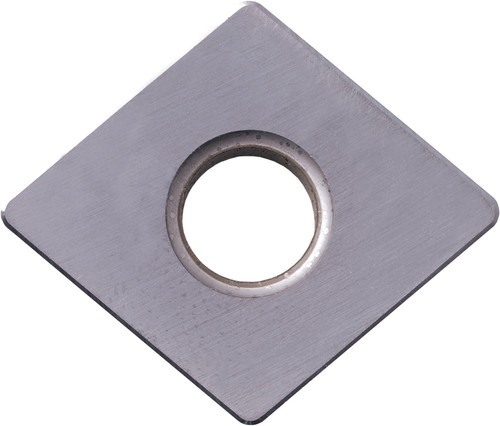

Kyocera CNGA 433T00420 KS6040 Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8850715
$42.27
Kyocera CNGA 433T00420 KS6040 Grade Ceramic, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Medium-Roughing in (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(S) Heat-Resistant Alloy
Corner Radius
3/64 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNGA
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
433
Old Material Number
8850715
ANSI Part Number
CNGA433T00420KS6040
ISO Part Number
CNGA433T00420
Rake
Negative
Material Group / Grade
KS6040
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Cutting Range
Medium-Roughing
Usage Classification
Heavy Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KS6030_KS6040_W.pdf
Kyocera CNGA 433T00420 KS6040 Grade Ceramic, Indexable Turning Insert
$42.27
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
