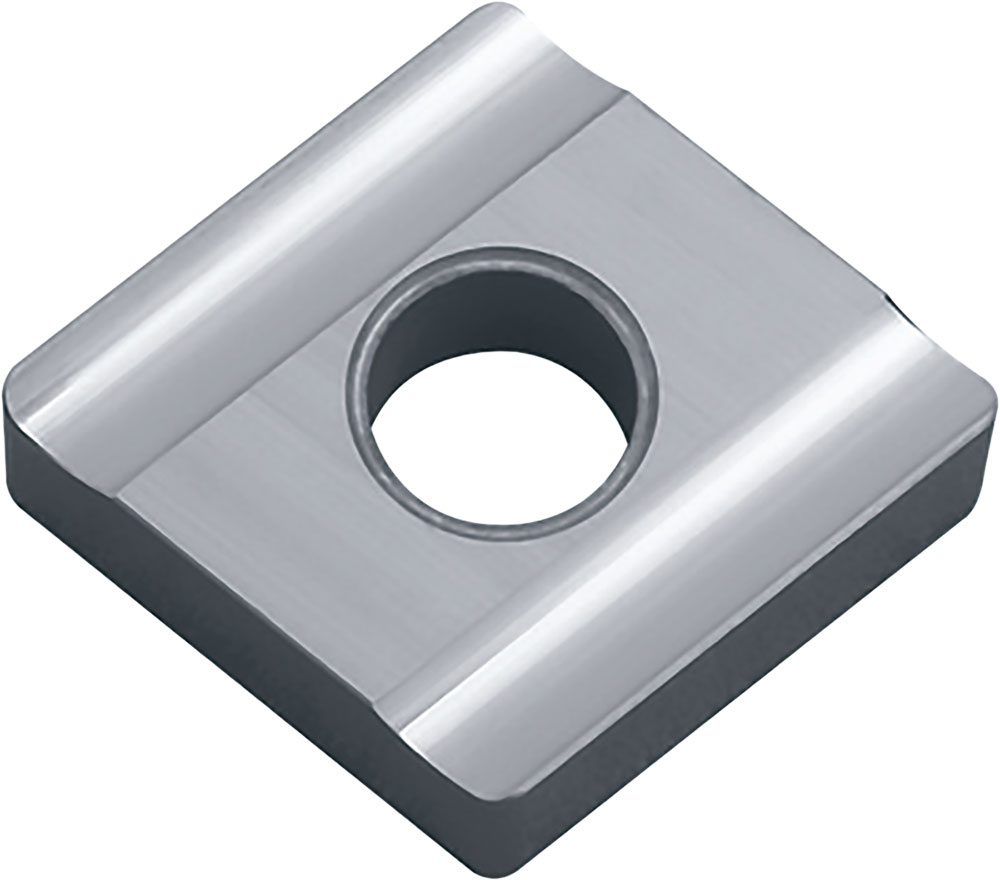

Kyocera CNGG 3305RS TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR01661
$27.59
Kyocera CNGG 3305RS TN620 Grade Uncoated Cermet, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNGG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3305
Old Material Number
8862533
ANSI Part Number
CNGG3305RSTN620
ISO Part Number
CNGG090402R-S
Rake
Negative
Material Group / Grade
TN620
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
S
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
