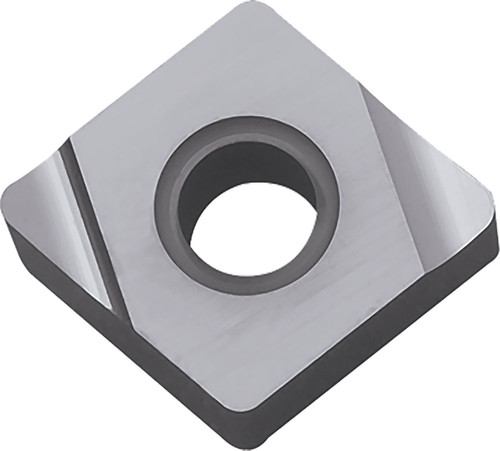

Kyocera Turning Insert CNGG331RS TN620: TSR01663

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR01663
$27.59

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Cermet, uncoated. Manufacturer part number TSR01663.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CNGG331RSTN620
Insert Style
CNGG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Grade
TN620
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
S
ISO Designation
CNGG090404R-S
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
