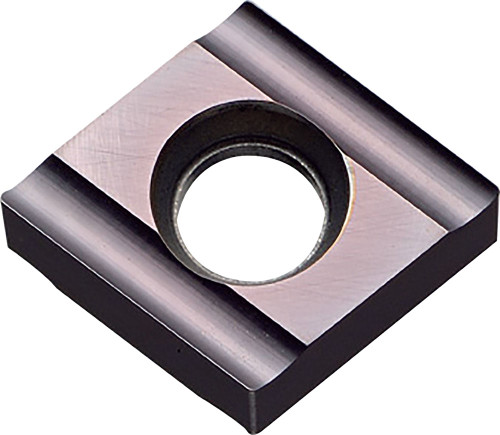

Kyocera CNGU 24205MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE01654
$47.49
Kyocera CNGU 24205MFRU PR1225 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
DSSS
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
0.01 Inch
Included Angle
80 degrees
Style
CNGU
Application
External Turning, Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
24205
Old Material Number
8831826
ANSI Part Number
CNGU24205MFRUPR1225
ISO Part Number
CNGU070302MFR-U
Rake
Negative
Material Group / Grade
PR1225
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Thickness (Fractional)
1/8
Thickness (Metric)
3.18
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
7.50
Inscribed Circle
0.30 Inch
Pack quantity
10
Kyocera CNGU 24205MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert
$47.49
