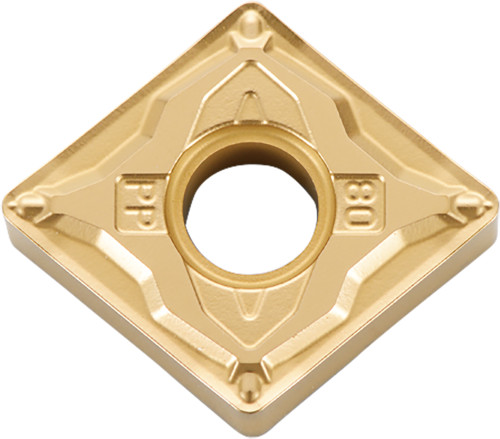

Kyocera Turning Insert CNMG4305PP CA510: TAA00883
SKU: KYP-TAA00883
Kyocera Turning Insert CNMG4305PP CA525, manufacturer part number TAC00883.
Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840758; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 4305; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG4305PPCA525; Chip Breaker Type: PP; ISO Designation: CNMG120402PP; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA525; Workpiece Material: Steel; Coating Process: CVD.
Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
