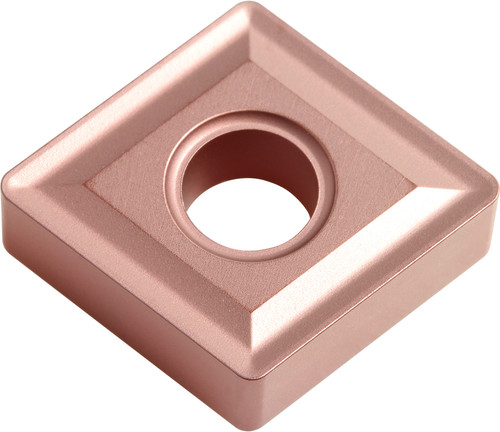

Kyocera Turning Insert CNMG431 CA320: TME00700

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TME00700
$18.17

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TME00700.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CNMG431CA320
Insert Style
CNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
431
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA320
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
Cast Iron
Cutting Range
Roughing
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
CNMG120404
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
