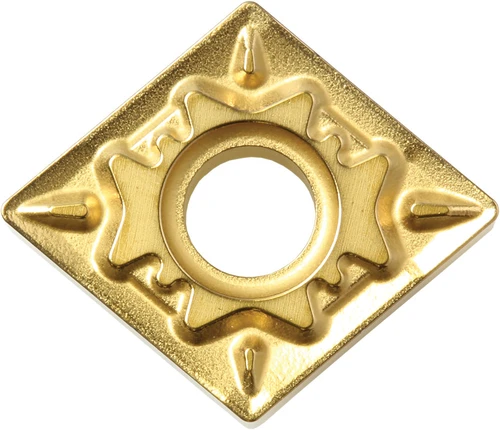

Kyocera Turning Insert CNMG431HQ CA510: TAA00860

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAA00860
$18.17

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAA00860.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CNMG431HQCA510
Insert Style
CNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
431
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA510
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
CNMG120404HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
