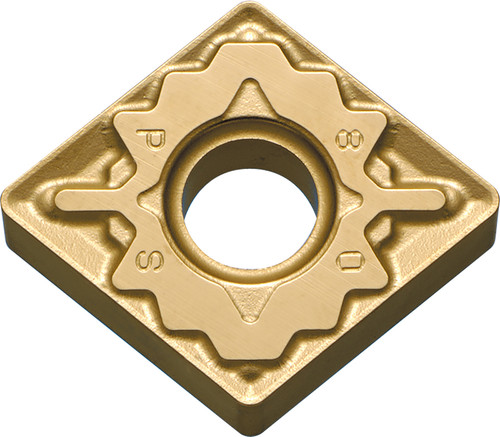

Kyocera Turning Insert CNMG431PS CA515: TAB00900

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB00900
$18.17

Kyocera Turning Insert CNMG431PS CA515, manufacturer part number TAB00900.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840789; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 431; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG431PSCA515; Chip Breaker Type: PS; ISO Designation: CNMG120404PS; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA515; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CNMG431PSCA515
Insert Style
CNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
431
Old Material Number
8840789
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA515
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
CNMG120404PS
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PS
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
