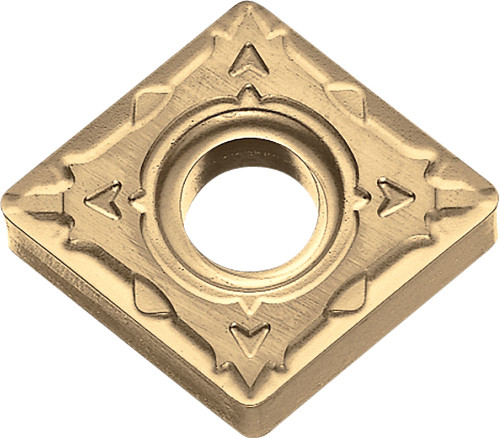

Kyocera Turning Insert CNMG431WP CA510: TAA00995

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAA00995
$18.17

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, CVD coated. Order reference TAA00995.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Insert Thickness (Fractional)
3/16
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CNMG431WPCA510
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
431
Insert Grade
CA510
Workpiece Material
Steel
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Coating Process
CVD
ISO Designation
CNMG120404WP
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Chip Breaker Type
WP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/WP_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
