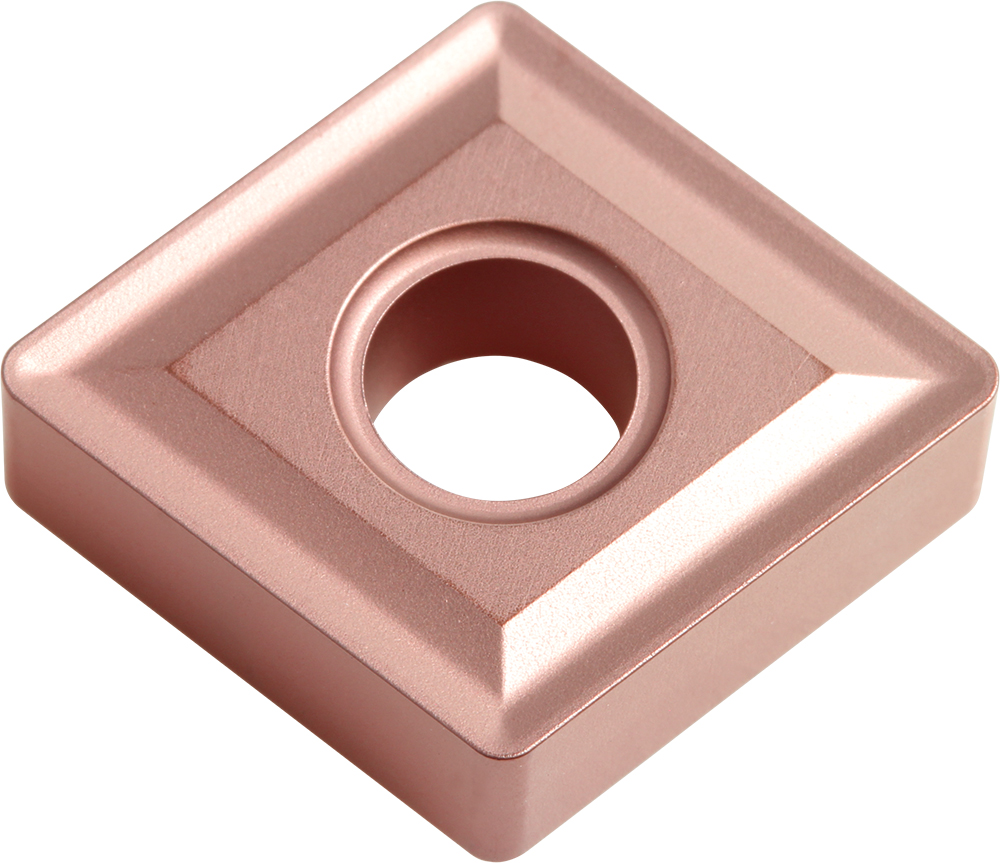

Kyocera Turning Insert CNMG432 PV7005: TJA01701

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJA01701
$18.89

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Cermet, MEGACOAT (PVD) coating. Manufacturer part number TJA01701.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CNMG432PV7005
Insert Style
CNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
PV7005
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
Cast Iron
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
PVD
ISO Designation
CNMG120408
Pack quantity
10
